HSJZ-51/105 PVC Soffit Trim making machine
Efficient Solution for Durable & Ventilated Soffit Panel Production
This line is specially designed working with Soffit Machine, for trim production. Here will use HSJZ-51/105 extruder for less power consumption, and small margin sheet wastage.
Product Description
HSJZ-65/132 PVC Soffit Panel Making Machine
This Soffit Panel Machine Extruder will use HSJZ-65/132 model, which installed with 37kw driving motor, whose extrusion ability ranges 100~250kg/hr. The Extruder machine parts are all branded. With SCREW & BARREL Sets has the advantages of high tenacity, high impact, good bending performance, high temperature resistance, etc.
- Inverter: Brands like ABB are commonly used to control the speed of the extruder and the haul - off machine, enabling energy - saving and easy speed adjustment.
- Extruder: Usually a twin - screw extruder, such as the conical twin - screw extruder. For example, the screw diameter of some models can be 65 mm, and the screw L/D ratio can reach 132:1, with a screw speed of 37 rpm. The extruder's screw is often made of 38CrMoAlA material, which has good wear - resistance and corrosion - resistance.
- Temperature Control System: Adopts well - known brands such as Omron to precisely control the temperature of the extruder, ensuring the stable melting and plasticizing of the materials.

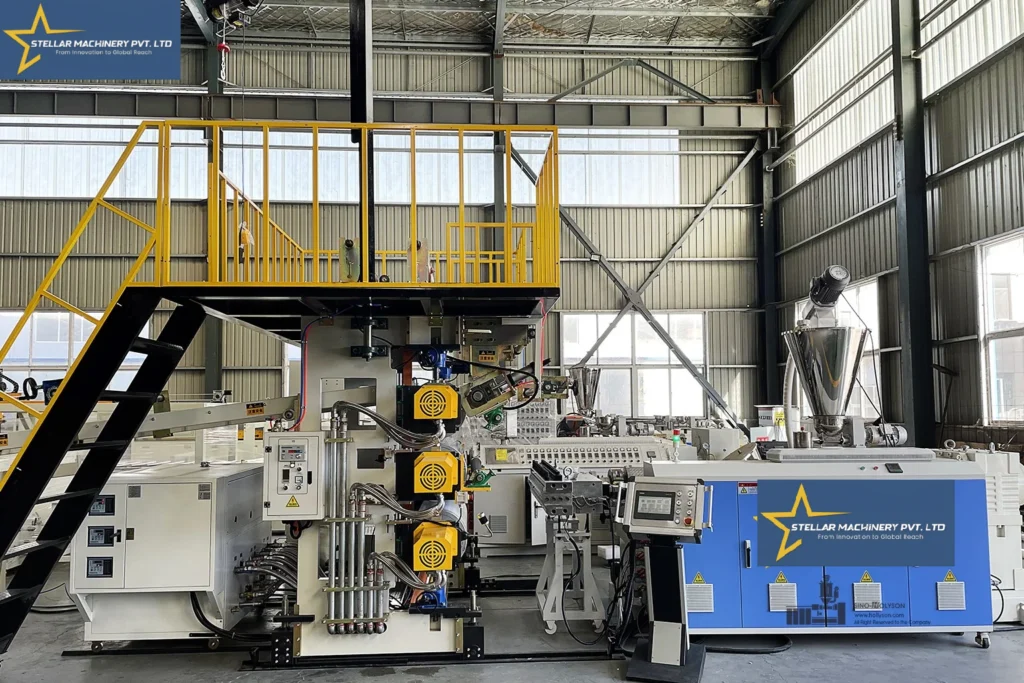

MAIN COMPONENTS of full plant:
| NO. | Item | Quantity |
|---|---|---|
| 1. | HSJZ-65/132 Conical Twin Screw Extruder(with auto-loader) | 1 set |
| 2. | T-Die(width ranging from 200~500mm) | 1 set |
| 3. | 2-Roller Film Laminating Machine | 1 set |
| 3.1 | Vacuum Cooling & Shaping Mould | 1 set |
| 3.2 | Double Caterpillar Haul-off/Traction Machine | 1 set |
| 4. | Hole Drilling Unit | 1 set |
| 5. | Automatic Cutting Machine | 1 set |
| 6. | Panel Discharger | 1 set |
| 7. | HSRL-Z 300/600L PVC Hot/Cold Mixer machine(with auto-loader) | 1 set |
Why Choose Our Machine
Our Soffit Panel Machines are engineered for reliability, efficiency, and long-term performance. We focus on delivering high-quality machinery that meets modern construction demands. With strong technical support and innovative design, we help you achieve smooth production and business growth.
